18m Long Reach Boom and Arm for PC220 Excavator

제품 세부 정보

인증: CE, ISO9001: 2000, SGS

지불 및 배송 조건

최소 주문 수량: 1

가장 좋은 가격 을 구하라

지금 연락하세요

사양

설명

사양

강조하다:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            18m excavator long reach boom, PC220 excavator long arm, excavator long arm with warranty


모델번호:	HD-LDB200-2	유형:	크롤러 굴삭기
버킷 용량:	0.1~0.5m³	재료:	Q345b(Sgc490)
붐 길이:	10000 밀리미터	팔 길이:	8000mm
맥스 파기 깊이:	12200 밀리미터	최대 광범위한 범위:	17600mm
최대 굴착 높이:	13500mm	접는 높이:	3040 밀리미터
정장 굴삭기 톤수:	20ton	추가 카운터 무게:	2000kg
버킷 크기:	0.4M3	핀 재료:	42CrMo4
용접 가스:	80% 아르곤, 20% CO2

모델번호:	HD-LDB200-2
유형:	크롤러 굴삭기
버킷 용량:	0.1~0.5m³
재료:	Q345b(Sgc490)
붐 길이:	10000 밀리미터
팔 길이:	8000mm
맥스 파기 깊이:	12200 밀리미터
최대 광범위한 범위:	17600mm
최대 굴착 높이:	13500mm
접는 높이:	3040 밀리미터
정장 굴삭기 톤수:	20ton
추가 카운터 무게:	2000kg
버킷 크기:	0.4M3
핀 재료:	42CrMo4
용접 가스:	80% 아르곤, 20% CO2

설명

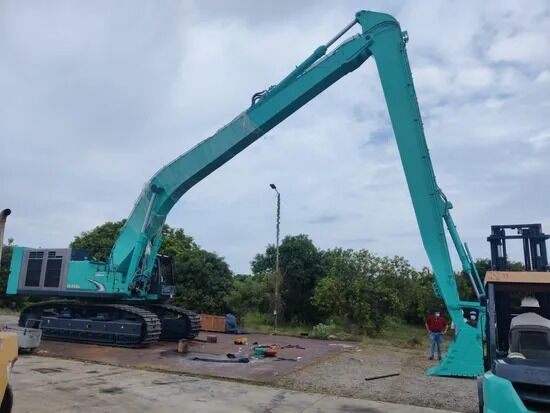

18m Long Reach Boom and Arm for PC220 Excavator

Product Description

Designed for dredging, port construction, railway construction and groundwork construction with extensive operation scope, high efficiency and enhanced safety.
Custom-designed long reach booms available for all excavator brands with detailed dimensions for PC220 models.
Complete package includes lubricant pipe system, hydraulic system, bucket, bucket cylinder, linkage, pins, and hoses.
Option to use original stick cylinder or include new stick cylinder (included with this PC220 model).
Constructed with Q345B + Q690D steel (Weldox optional) with 42CrMo4 pins for superior durability.
Precision 45-degree beveled plates before welding for optimal joint strength.
Customizable additional pipelines available upon request.
Manual welding with 80% Argon and 20% CO2 protective gas mixture for premium weld quality.
Boring machine precision adjustment for all base joints and main structures to minimize welding stress tolerance.
Includes comprehensive parts list for easy maintenance and after-sales service.
Detailed dimension drawings provided for pre-order confirmation.
Includes anti-explode valve for stick cylinder (JCB220 model).

Technical Specifications

Specification	Value
Boom length	1000 mm
Arm length	8000 mm
Max dig depth	12200 mm
Max extensive scope	17600 mm
Max dig height	13500 mm
Folding height	3040 mm
Bucket volume	0.4 m³
Counter weight	Not required
