CE Certified Excavator Long Reach Boom Arm up to 34m

제품 세부 정보

원래 장소: 광동, 중국

브랜드 이름: Haide

모델 번호: PC200/PC210/PC240/PC300/PC350/PC360/PC400/PC450/PC600/PC650/PC800

지불 및 배송 조건

최소 주문 수량: 1

가장 좋은 가격 을 구하라
지금 연락하세요
사양
강조하다:

CE certified excavator long reach boom

,

excavator long arm up to 34m

,

long reach excavator boom with warranty

최대 길이:
34m
적용 가능한 톤수:
10ton ~ 350ton
표면 마감:
상드-블라스티드와 페인트 칠해지
재료 옵션:
Q345B, Q690D, Weldox
총 길이:
13000mm ~ 24000mm
무게:
3000kg ~ 7000kg
맥스 파기 깊이:
9000mm ~ 18000mm
Max Extensivescope:
12500mm ~ 23600mm
최대 굴착 높이:
11300mm ~ 17300mm
접는 높이:
2900mm ~ 3400mm
버킷 크기:
0.3m3 ~ 0.6m3
발굴기 수량:
12ton ~ 45ton
액세서리 포함:
버킷, 링키지, 버킷 실린더, 오일 파이프/호스, 윤활 시스템
생산 소요시간:
1 세트의 15 일, 3 세트의 경우 20 일
컨테이너 적재 능력:
3 개의 완전한 세트
최대 길이:
34m
적용 가능한 톤수:
10ton ~ 350ton
표면 마감:
상드-블라스티드와 페인트 칠해지
재료 옵션:
Q345B, Q690D, Weldox
총 길이:
13000mm ~ 24000mm
무게:
3000kg ~ 7000kg
맥스 파기 깊이:
9000mm ~ 18000mm
Max Extensivescope:
12500mm ~ 23600mm
최대 굴착 높이:
11300mm ~ 17300mm
접는 높이:
2900mm ~ 3400mm
버킷 크기:
0.3m3 ~ 0.6m3
발굴기 수량:
12ton ~ 45ton
액세서리 포함:
버킷, 링키지, 버킷 실린더, 오일 파이프/호스, 윤활 시스템
생산 소요시간:
1 세트의 15 일, 3 세트의 경우 20 일
컨테이너 적재 능력:
3 개의 완전한 세트
설명

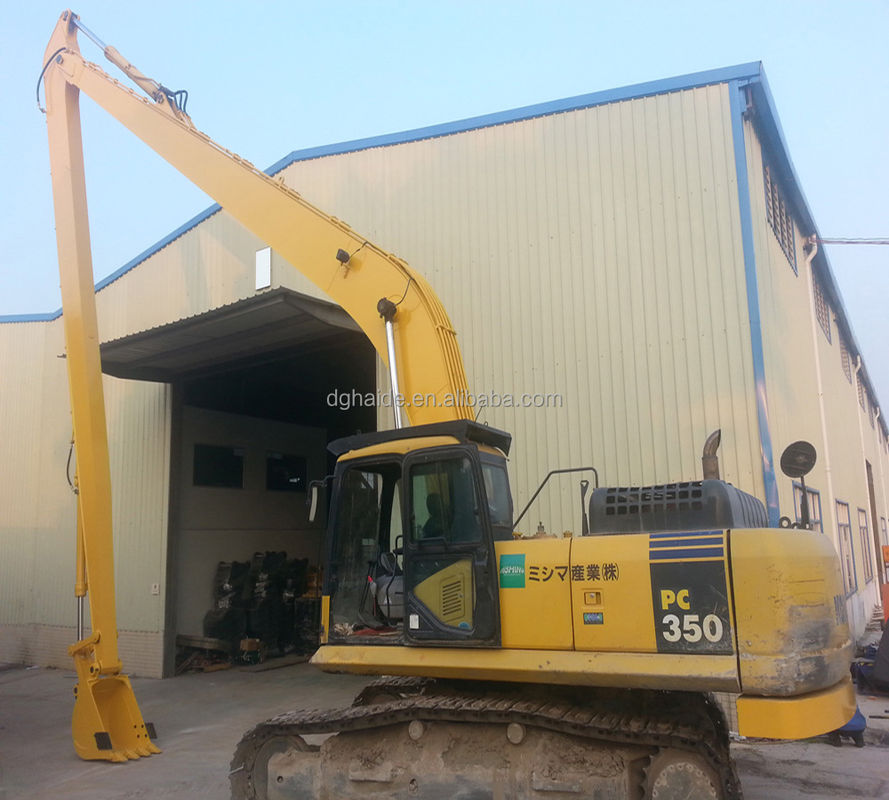

CE Certified Excavator Long Reach Boom Arm up to 34m
CE-approved PC Long Reach Boom and Arm
Product Specifications
Attribute Value
Purpose Long reach application for excavator
Excavator model Any make and model of excavator
Colour Optional
Certificate CE and ISO certificate
Accessory included bucket, linkage, bucket cylinder, oil pipe/hose, lubricating system
Maximum length 34m
Surface finish Sand-blasted and painted
Applicable excavator tonnage From 10ton to 350ton
OEM service Available
Warranty 6 months
Product Features
  • Compatible with all makes and models of excavators
  • Standard supply includes: bucket, linkage, bucket cylinder, 4 oil pipes/hoses, 6 pins, and lubricating system
  • Multiple material options available (Q345B, Q690D, Weldox) to suit specific applications
  • Large boom can be split into two sections for container transport
  • All steel plate edges are tapered by bevelling machine before welding for enhanced strength
  • One year warranty included
  • Reinforced construction available for heavy-duty applications like mining operations
  • Compliant with Europe Machinery Directive 2006/42/EC Article 12 with CE certification
  • Additional pipeline can be installed for extra attachments (breaker, hammer, quick coupler, etc.)
  • Established references in Australia, Europe, India, Bangladesh, Canada, South-east Asia, and South America
Certification & Documentation
  • CE and ISO certificates provided
  • Detailed product brochure available in PDF format
Packaging & Shipping
  • Initial protective film wrapping with steel wire securing inside containers
  • Three complete sets can be loaded per container using racks for upper sets
  • Production lead time: 15 days for 1 set, 20 days for 3 sets
Standard Models
Model LDB120 LDB200 LDB220 LDB300 LDB350 LDB400 LDB450
Total length(mm) 13000 15380 15380 18000 20000 22000 24000
Weight(kg) 3000 4000 4200 5200 6000 6500 7000
Max dig depth(mm) 9000 11340 11370 13000 15000 16500 18000
Max extensiveScope (mm) 12500 15100 15100 17600 19600 21600 23600
Max dig height(mm) 11300 12510 12610 13720 14920 16100 17300
Folding height(mm) 2900 2980 3040 3210 3210 3400 3400
Bucket volume(m3) 0.3 0.4 0.4 0.4 0.5 0.6 0.6
Excavator Tonnage(ton) 12 20 22 30 35 40 45
CE Certified Excavator Long Reach Boom Arm up to 34m 0 CE Certified Excavator Long Reach Boom Arm up to 34m 1 CE Certified Excavator Long Reach Boom Arm up to 34m 2 CE Certified Excavator Long Reach Boom Arm up to 34m 3
